M-Audio Delta 66 1/2
M-Audio Delta 66 1/2 mixer
gigabeatG23

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 44 kHz




Summary

TestM-Audio Delta 66 1/2M-Audio Delta 66 1/2 mixergigabeatG23
Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.09+0.06, -0.19+0.04, -0.04
Noise level, dB (A): -97.1-93.4-85.4
Dynamic range, dB (A): 97.392.584.5
THD, %: 0.00090.00070.0049
IMD + Noise, %: 0.00440.00700.019
Stereo crosstalk, dB: -98.2-71.2-72.3

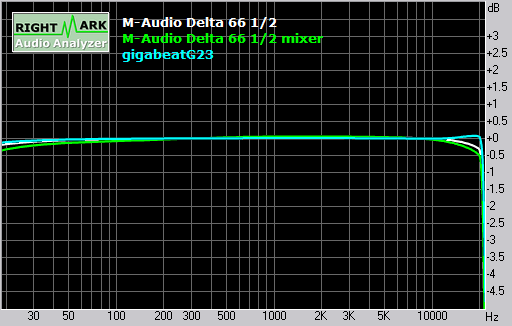

Frequency response

Spectrum graph

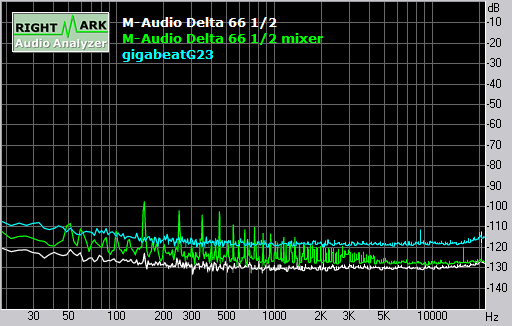

Noise level

Spectrum graph

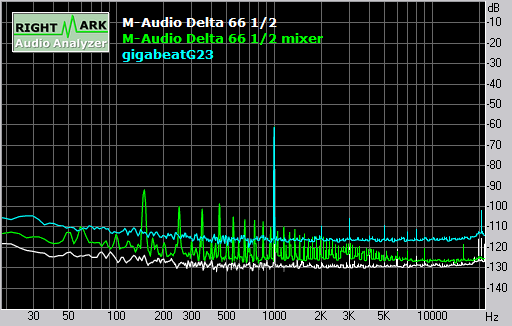

Dynamic range

Spectrum graph

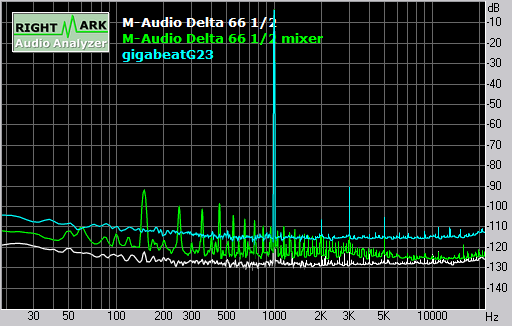

THD + Noise (at -3 dB FS)

Spectrum graph

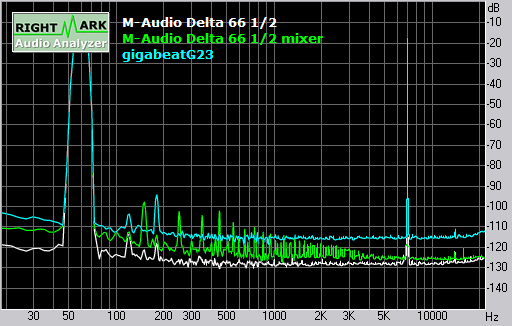

Intermodulation distortion

Spectrum graph

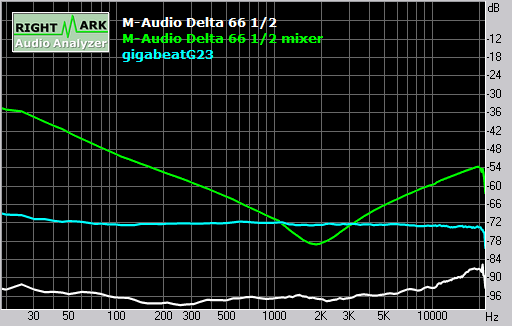

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
