RightMark Audio Analyzer test report

Testing device Lame
Sampling mode 16-bit, 44 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.0.5


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.13, -0.36
Good
Noise level, dB (A)
-97.7
Excellent
Dynamic range, dB (A)
97.6
Excellent
THD, %
0.0010
Excellent
THD + Noise, dB (A)
-81.0
Good
IMD + Noise, %
0.0099
Very good
Stereo crosstalk, dB
-98.5
Excellent
IMD at 10 kHz, %
0.0045
Excellent
General performance

Excellent

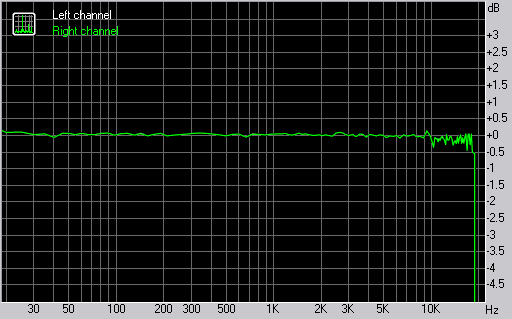

Frequency response

Spectrum graph

From 20 Hz to 20 kHz, dB
-78.45, +0.13
From 40 Hz to 15 kHz, dB
-0.36, +0.13

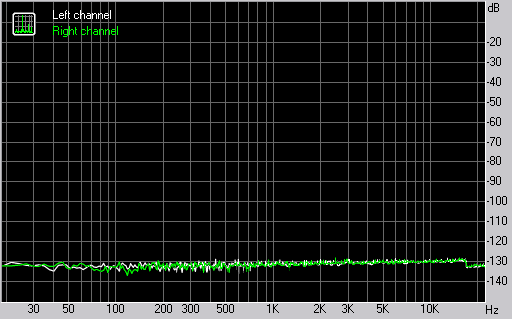

Noise level

Spectrum graph


Left
Right
RMS power, dB
-96.8
-96.8
RMS power (A-weighted), dB
-97.7
-97.6
Peak level, dB FS
-84.3
-84.3
DC offset, %
-0.0
+0.0

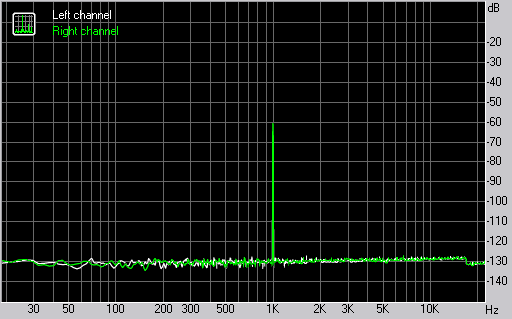

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+96.7
+96.7
Dynamic range (A-weighted), dB
+97.6
+97.6
DC offset, %
-0.00
-0.00

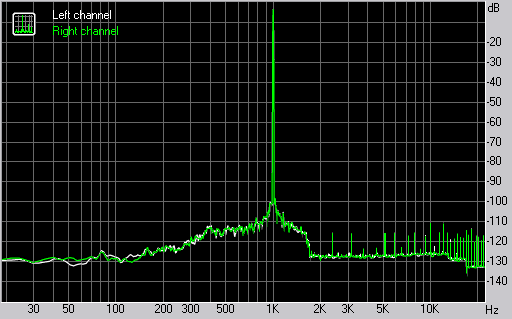

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0009
+0.0010
THD + Noise, %
+0.0083
+0.0084
THD + Noise (A-weighted), %
+0.0089
+0.0089

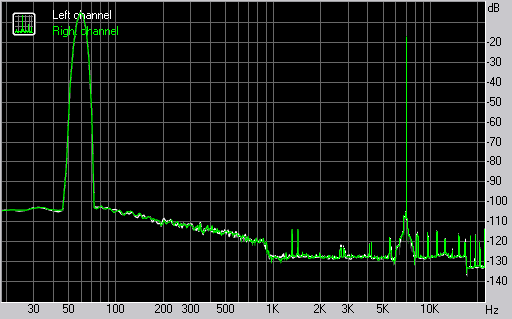

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0099
+0.0099
IMD + Noise (A-weighted), %
+0.0074
+0.0074

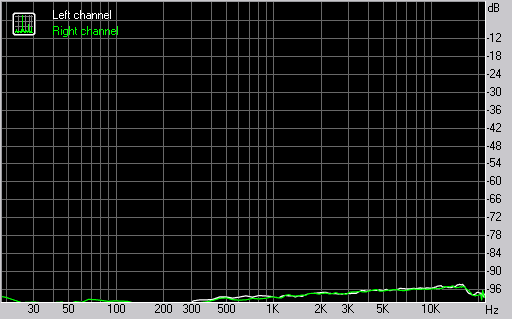

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-101
-99
Crosstalk at 1000 Hz, dB
-97
-98
Crosstalk at 10000 Hz, dB
-95
-95

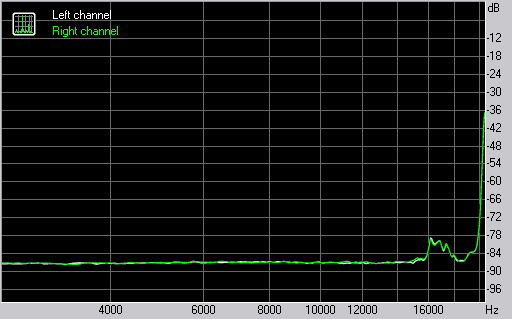

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0044
0.0045
IMD + Noise at 10000 Hz,
0.0045
0.0044
IMD + Noise at 15000 Hz,
0.0044
0.0048
